16-December-2002
Detail photos of the car after we towed it up from Medford.
Saturday morning my stepdad and I pulled the engine and transmission out of the Fiat. We thought it would be easier to pull the entire package out at once. If we would have known to remove the shift tower guts, disconnect the idler arm support bracket (to make room for the transmission to slide forward) and take off the little hood latch, it would have been cake. It still wasn't very hard, but we spent some time fiddling about. Then, my friend and co-worker Tyler arrived with his giant Mopar Cummins Turbo Diesel, and we loaded the Fiat on a tow dolly. We made the trip north just fine, although it was horrible weather. Tyler's dog, Tucker, a giant German Wirehair, shed all over the front of the Fiat. So, don't mind a few loose hairs in the photos below. Oh yeah, I snapped a few pics of our fun removing the old engine, but I'm having trouble getting them off the little memory card. I'll keep trying.

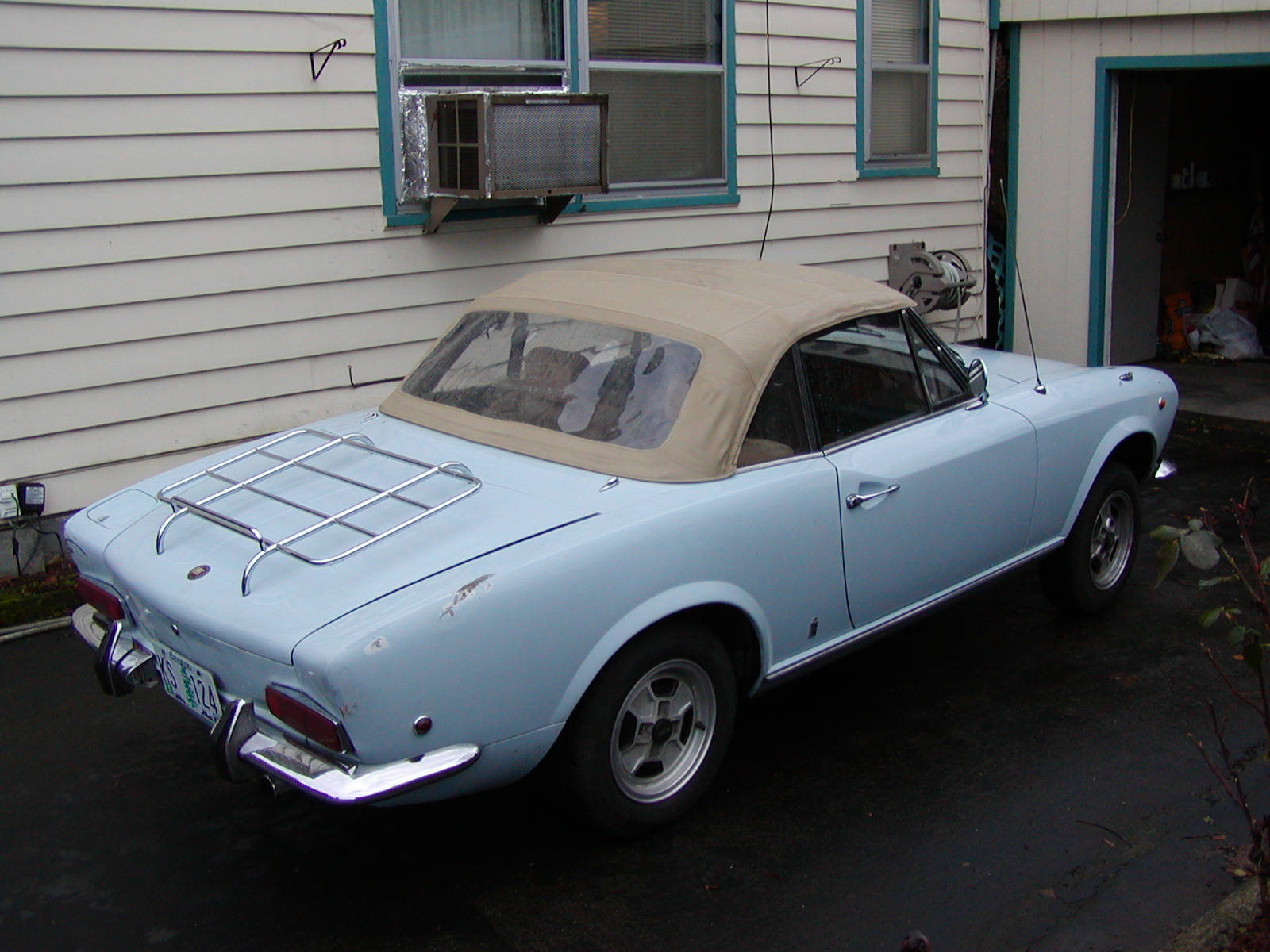

 PC150001.JPG Rear view of the car in my driveway. |

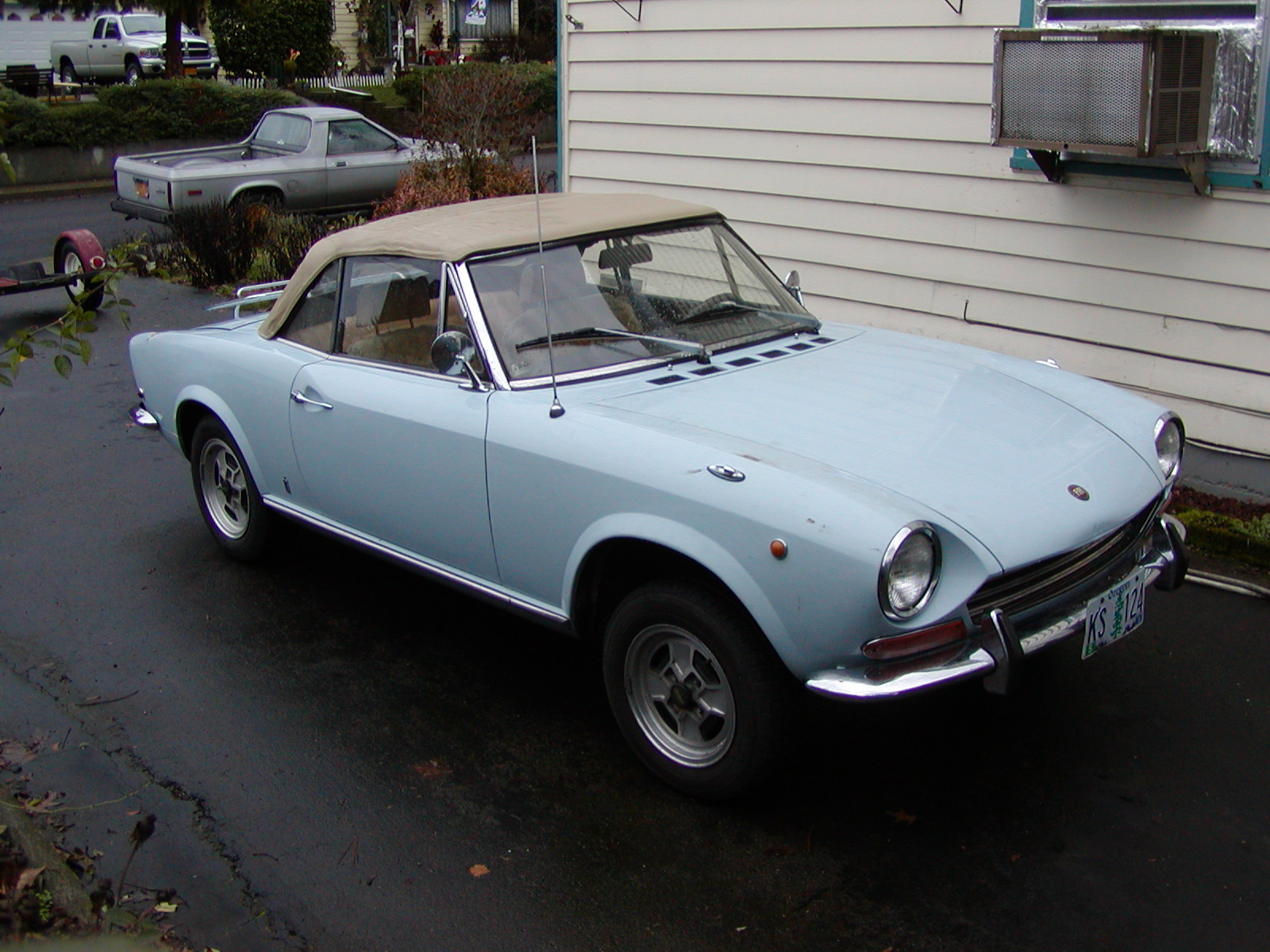

 PC150002.JPG Front view of the motor boat! Without the engine, the front sits pretty high. |

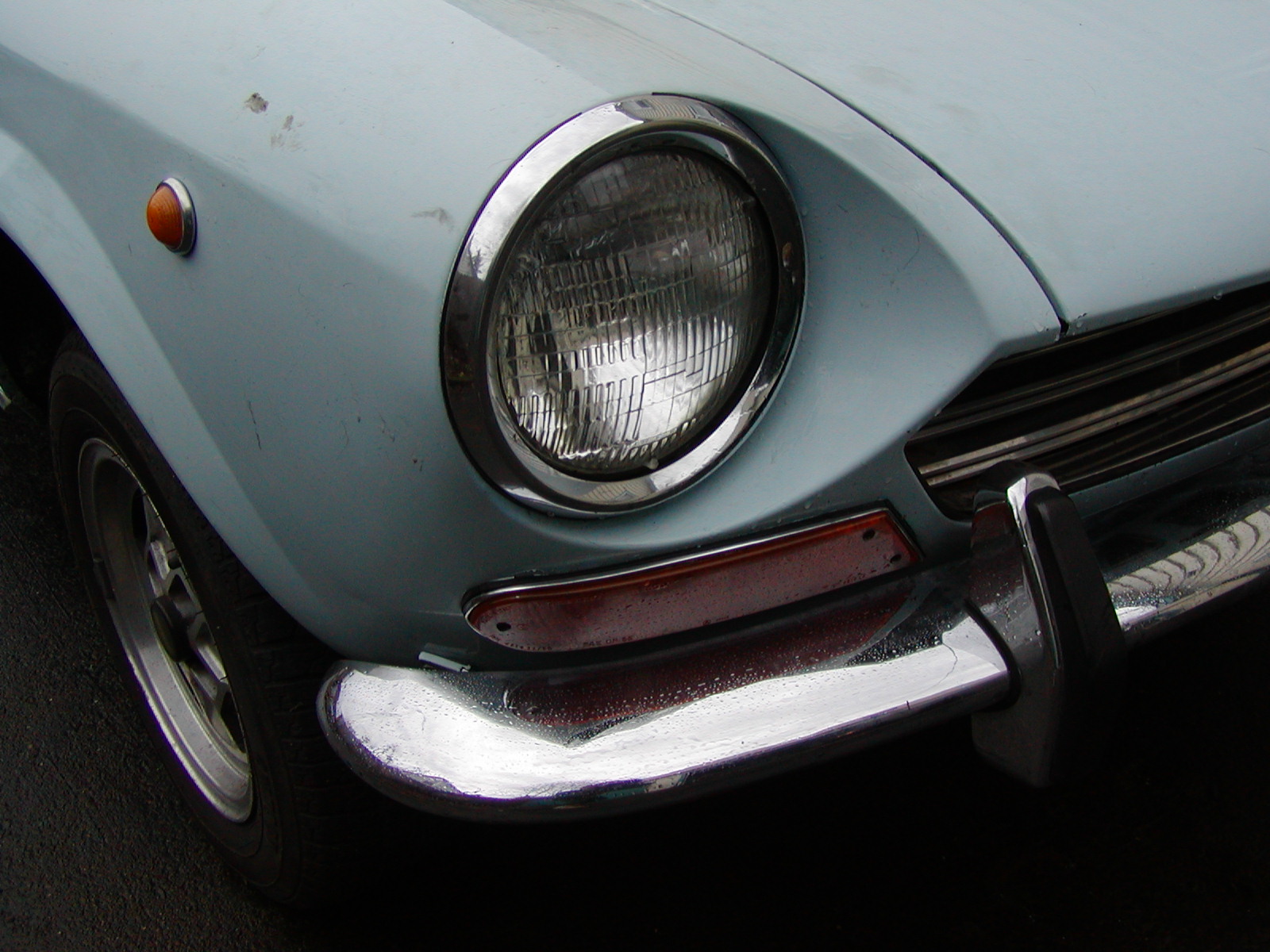

 PC150003.JPG Detail of the headlight, turn signal, chrome bumper and small marker lamp on the fender. |

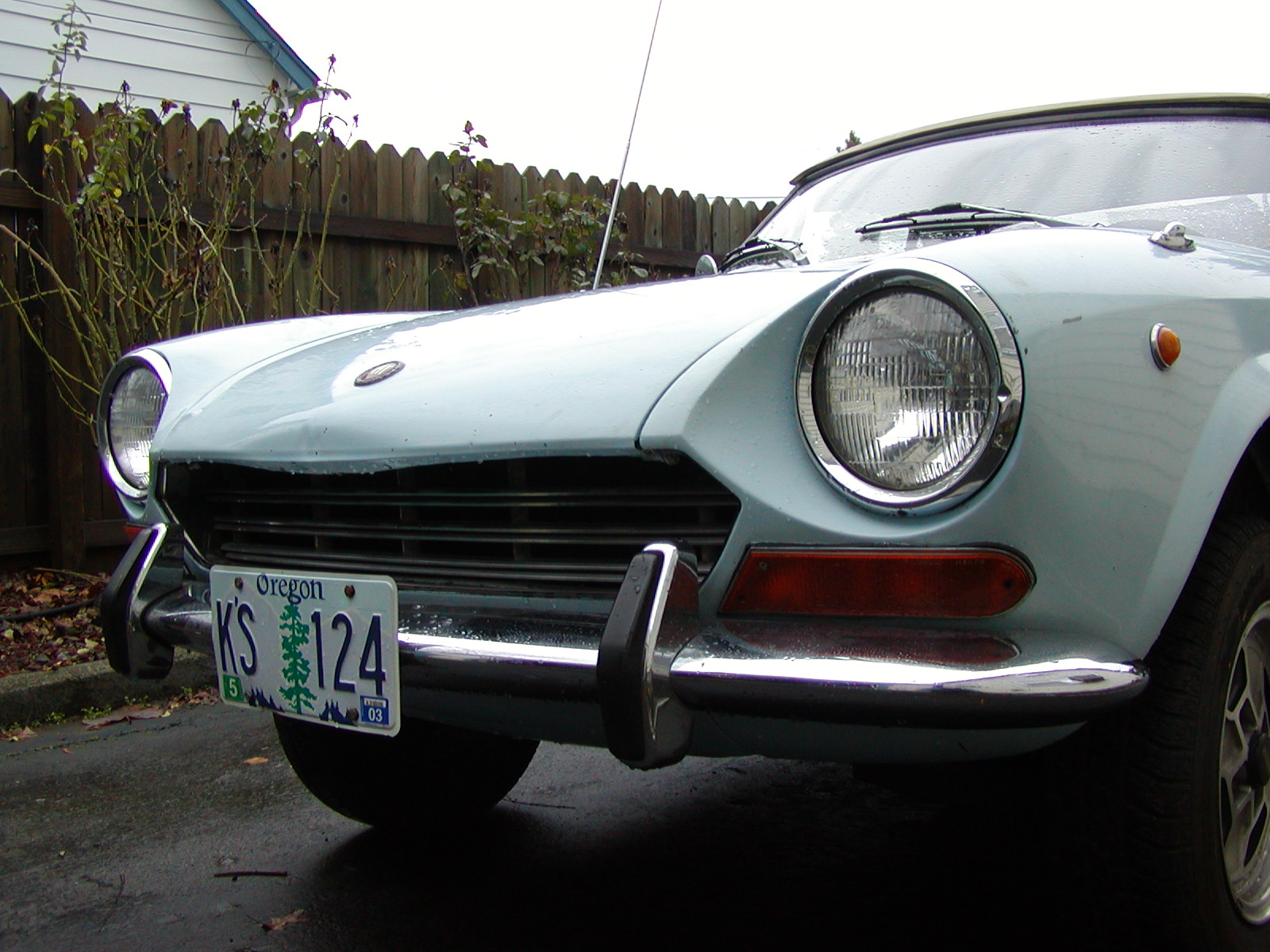

 PC150004.JPG This is the early grill, with three slim horizintal bars. |

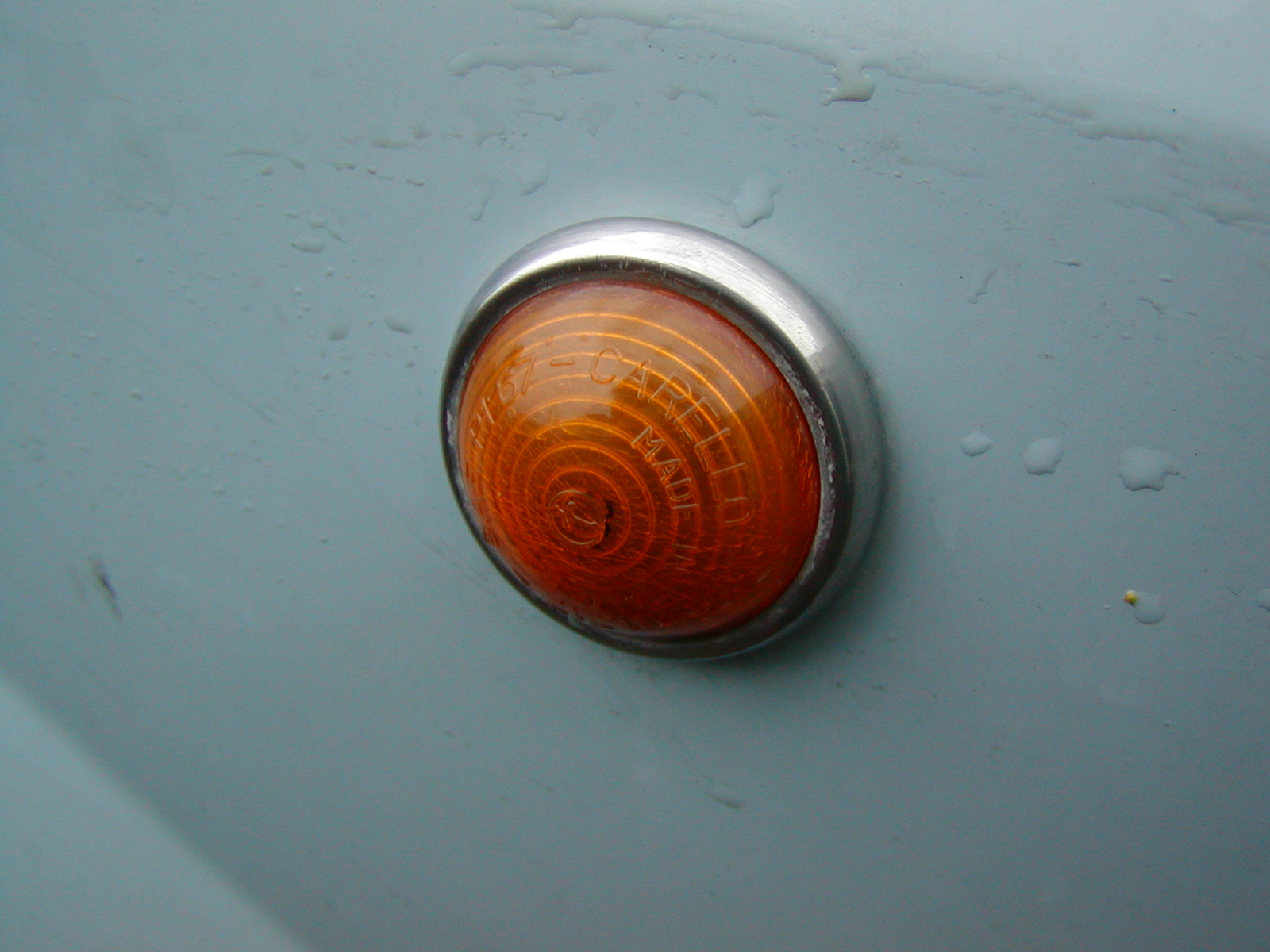

 PC150006.JPG Detail of the little orange front marker lamp. |

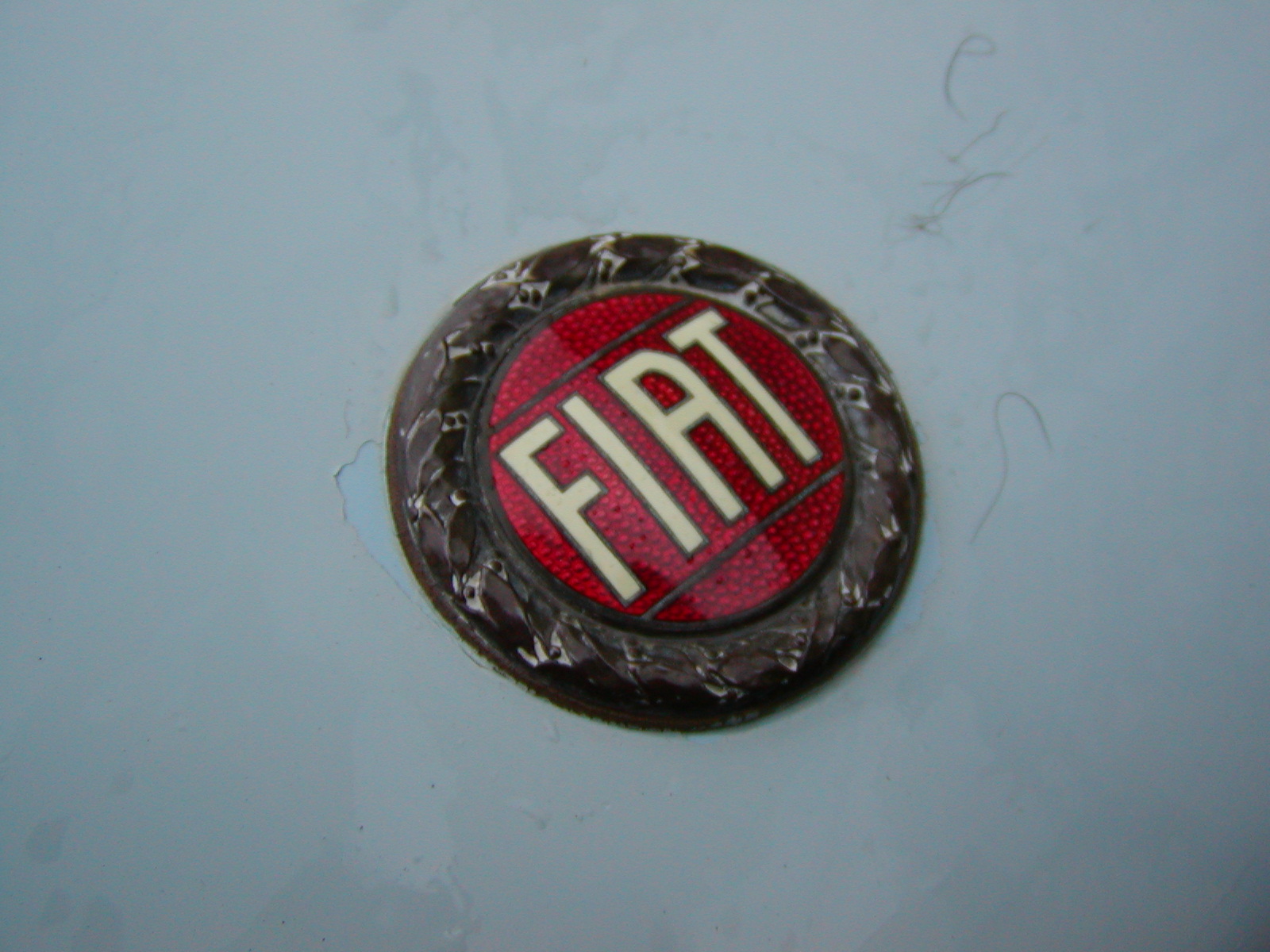

 PC150007.JPG FIAT badge on the hood. |

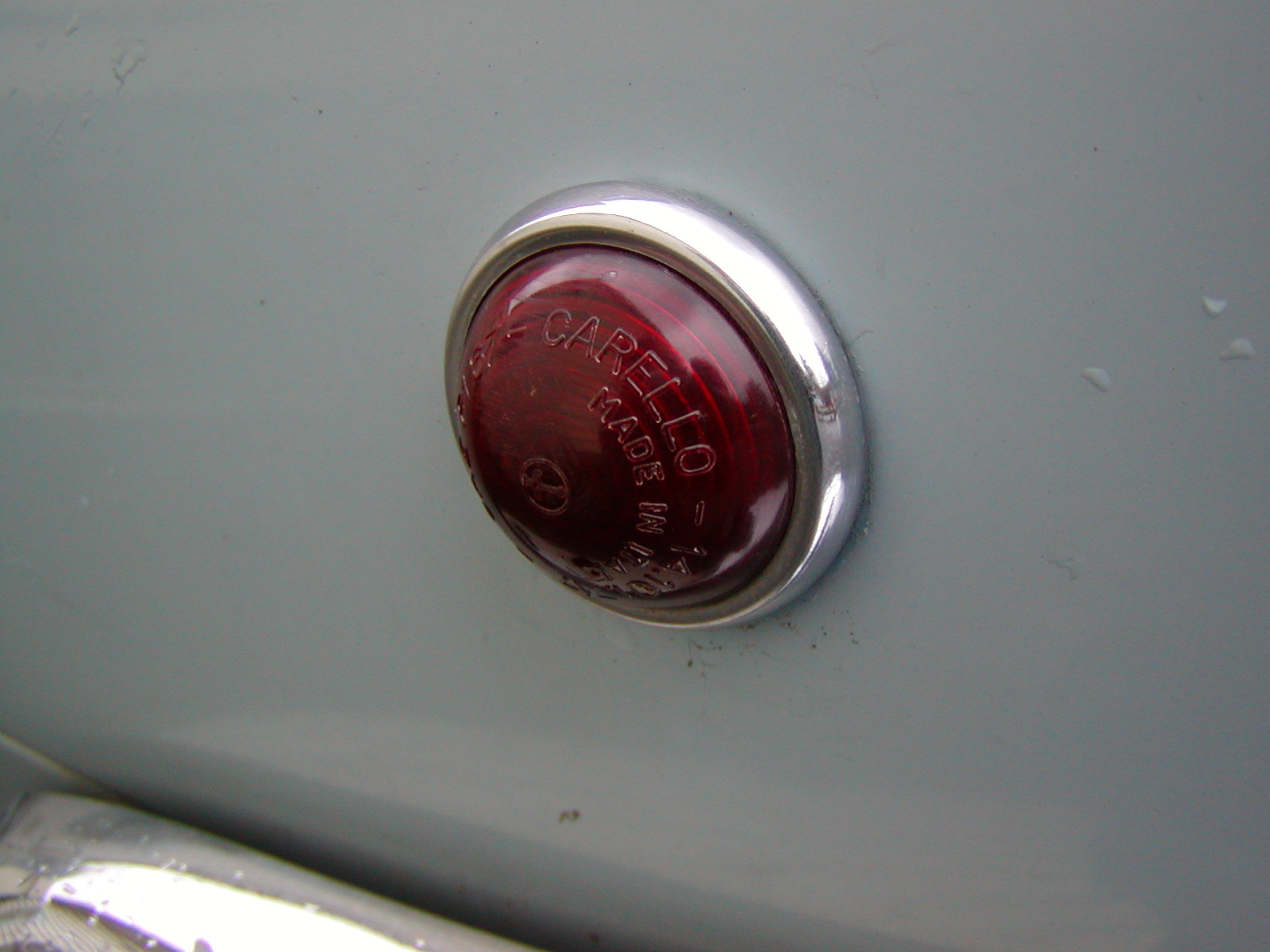

 PC150008.JPG Detail of the rear marker lamp. |

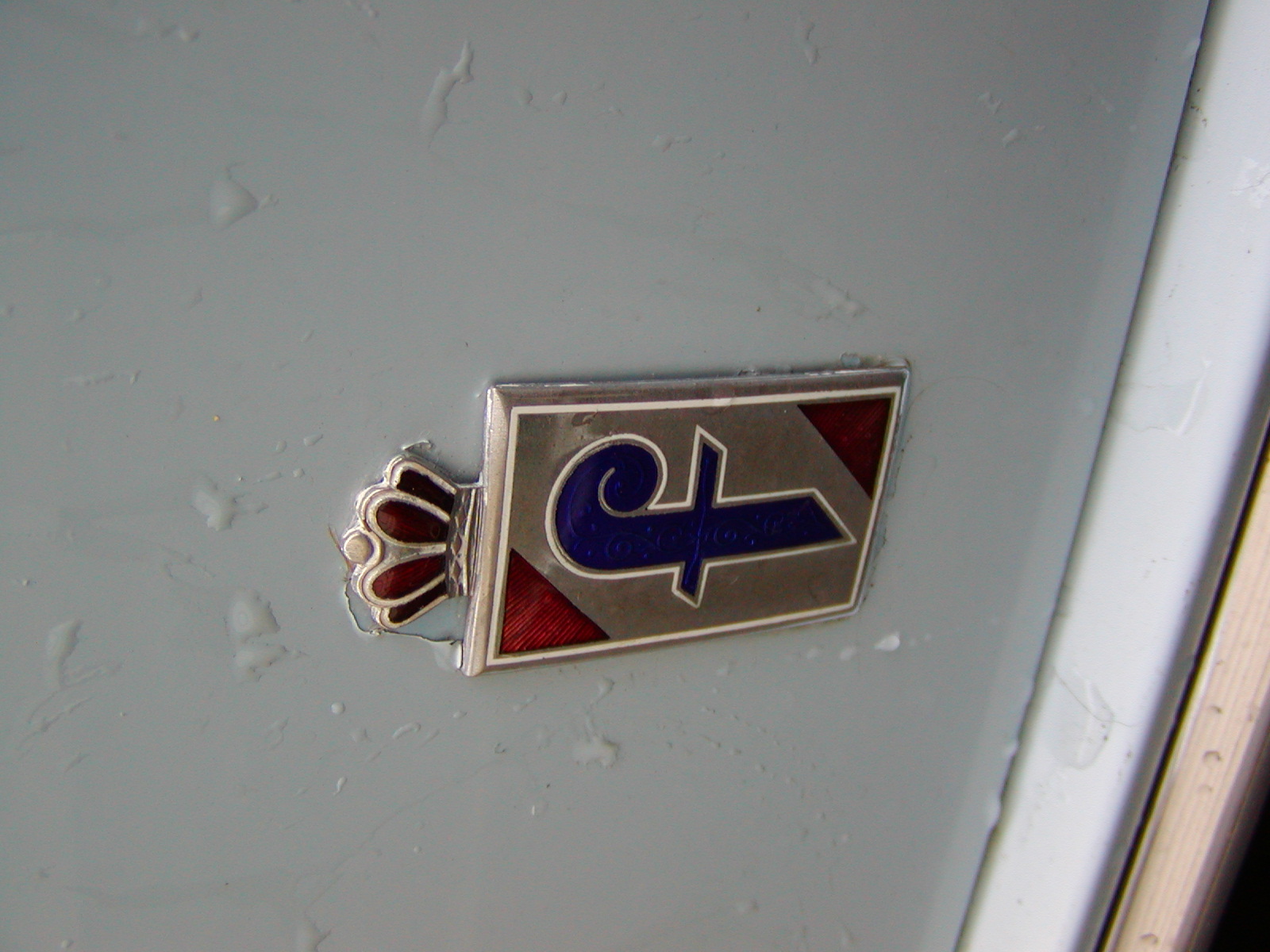

 PC150009.JPG The Pininfarina badge on the rear quarter panel. |

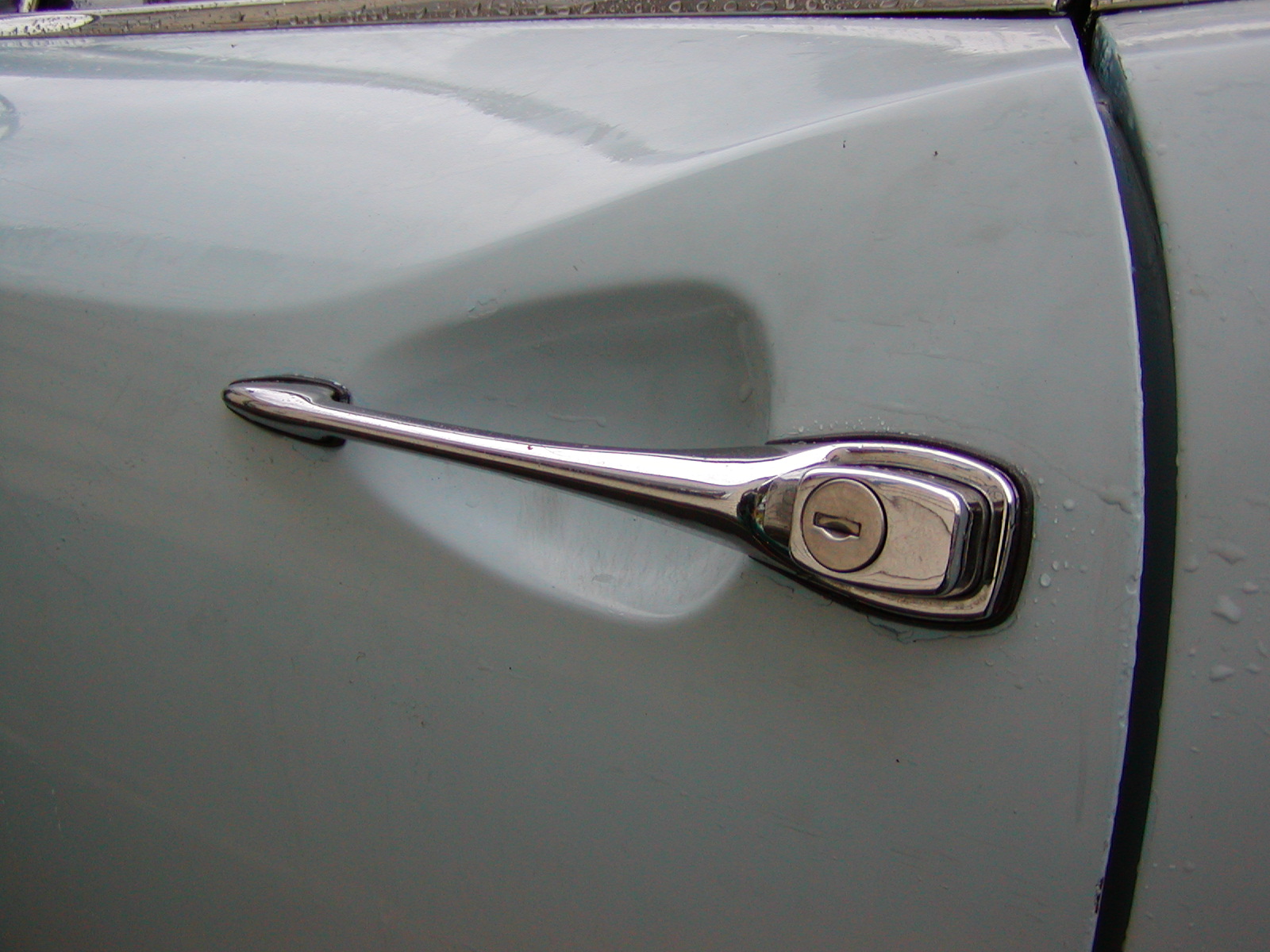

 PC150010.JPG A very elegant door handle. |

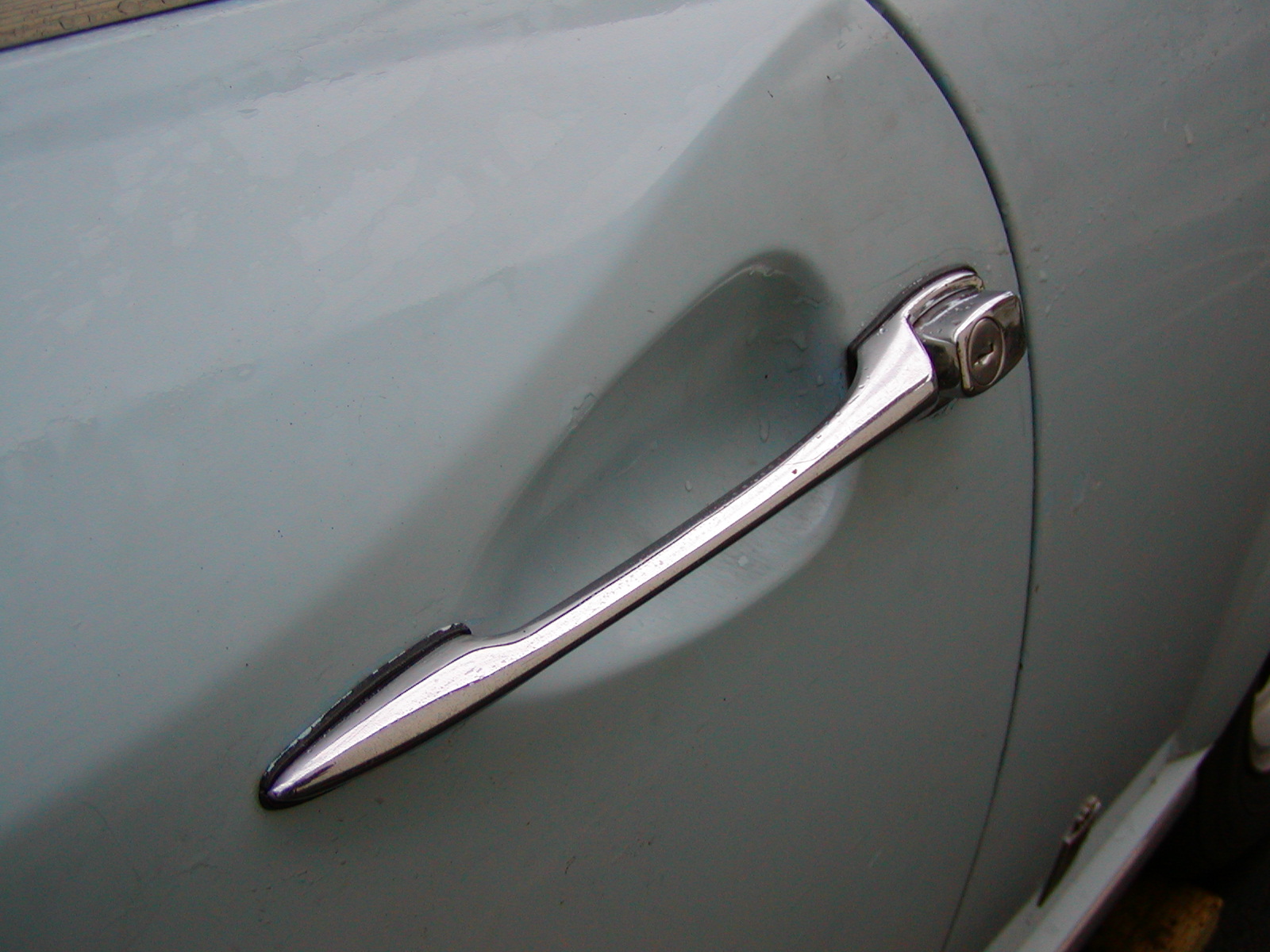

 PC150011.JPG Another view of the door handle. |
 PC150012.JPG Rear viiew showing the chrome bumpers, small tail lights, and the original Fiat luggage rack. |

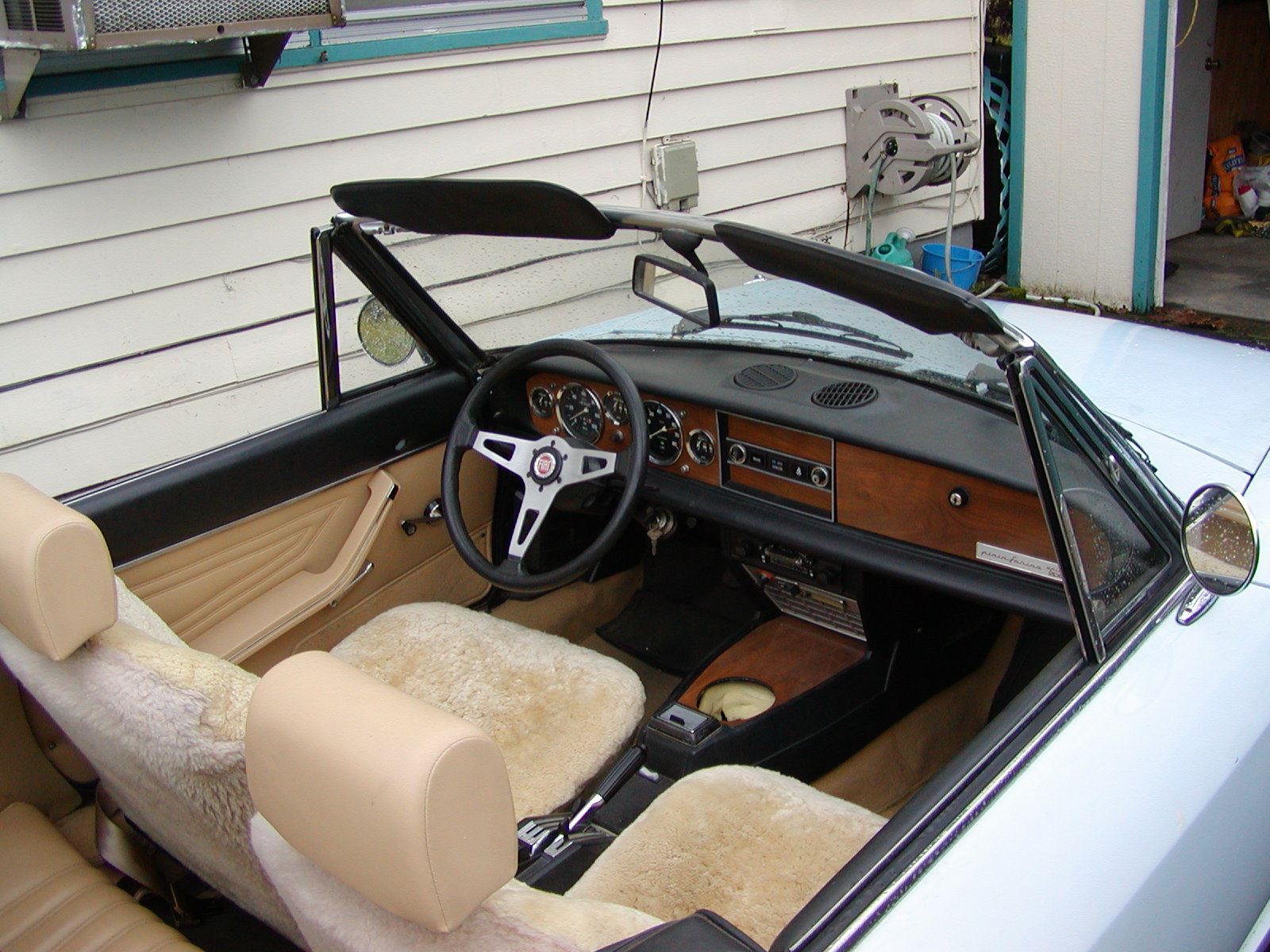

 PC150013.JPG Interior shot showing the low mileage 2000 Spider dash we installed a couple years back. |

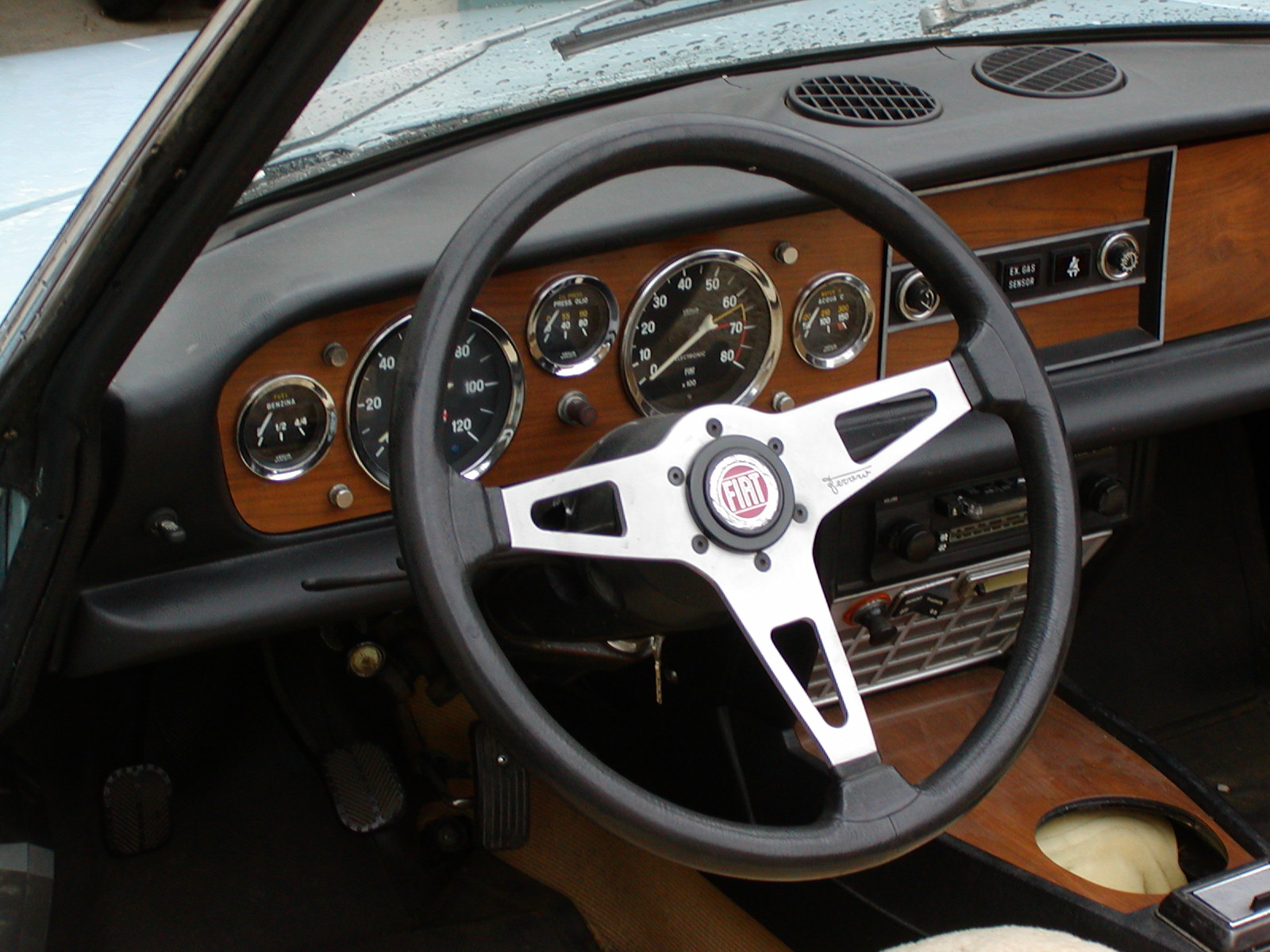

 PC150014.JPG 2000 Spider steering wheel. |

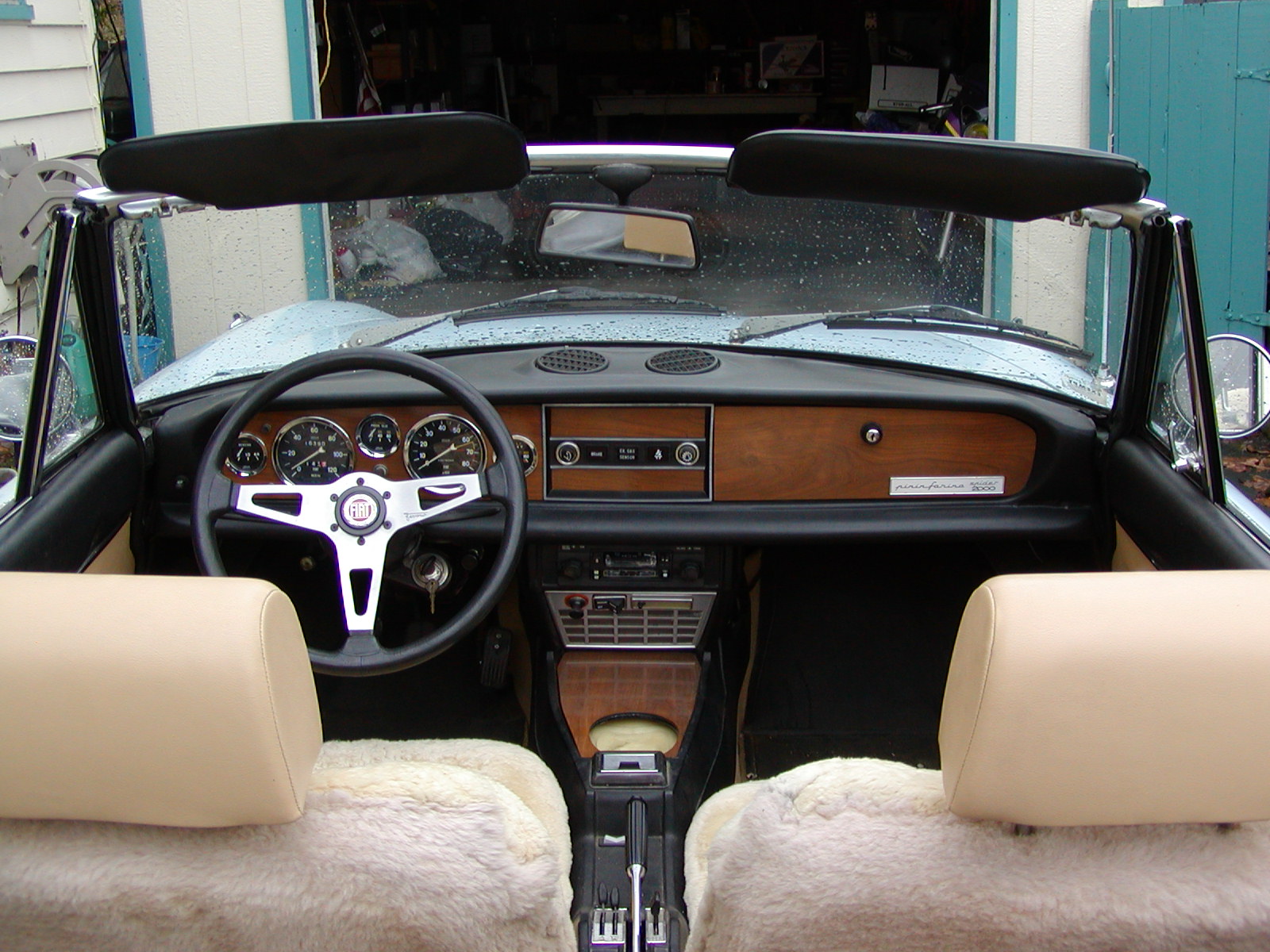

 PC150015.JPG Straight ahead view of the dash. |

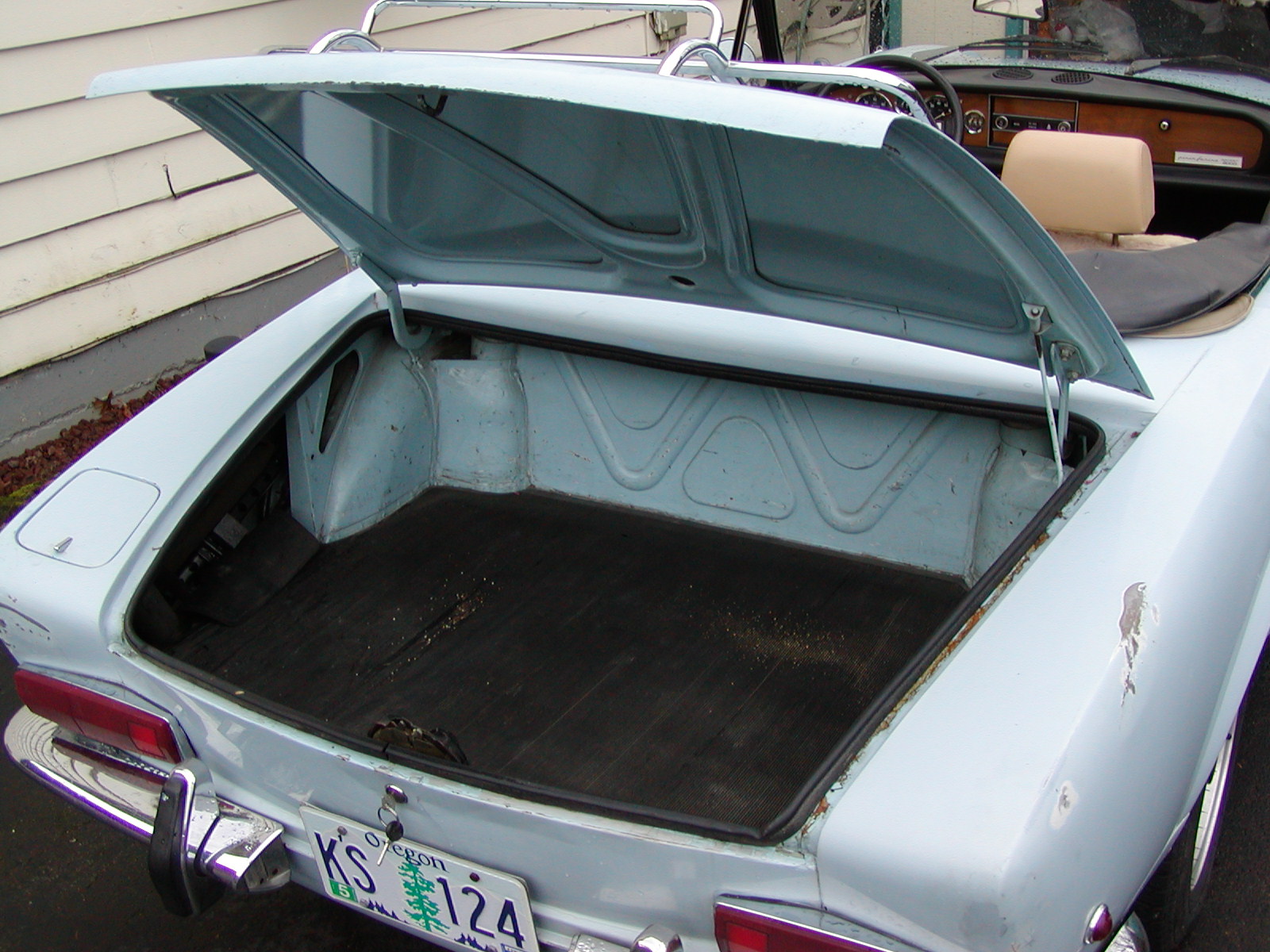

 PC150016.JPG Luggage area is wide and flat. |

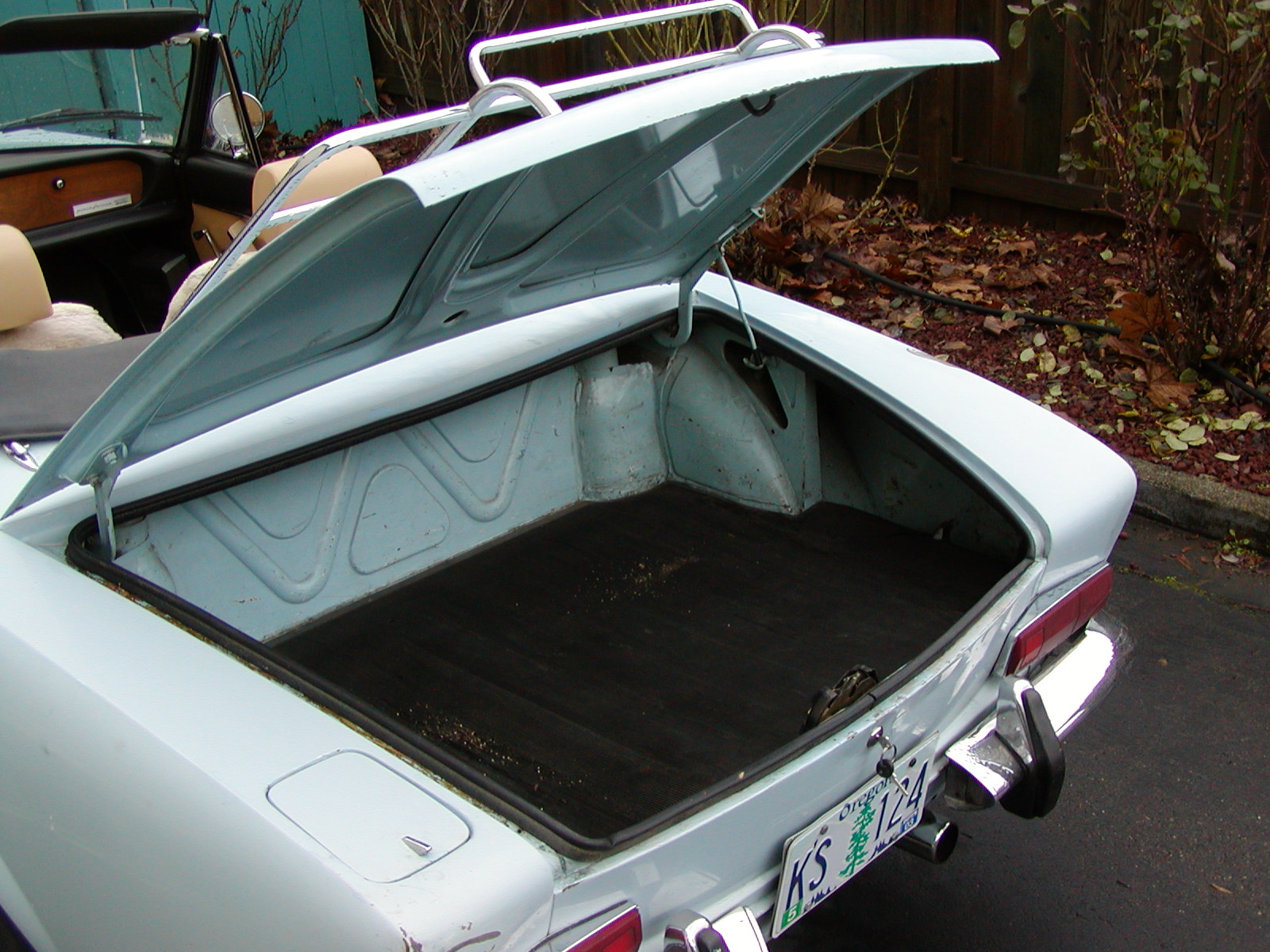

 PC150017.JPG Check out the little spring loaded door prop. |

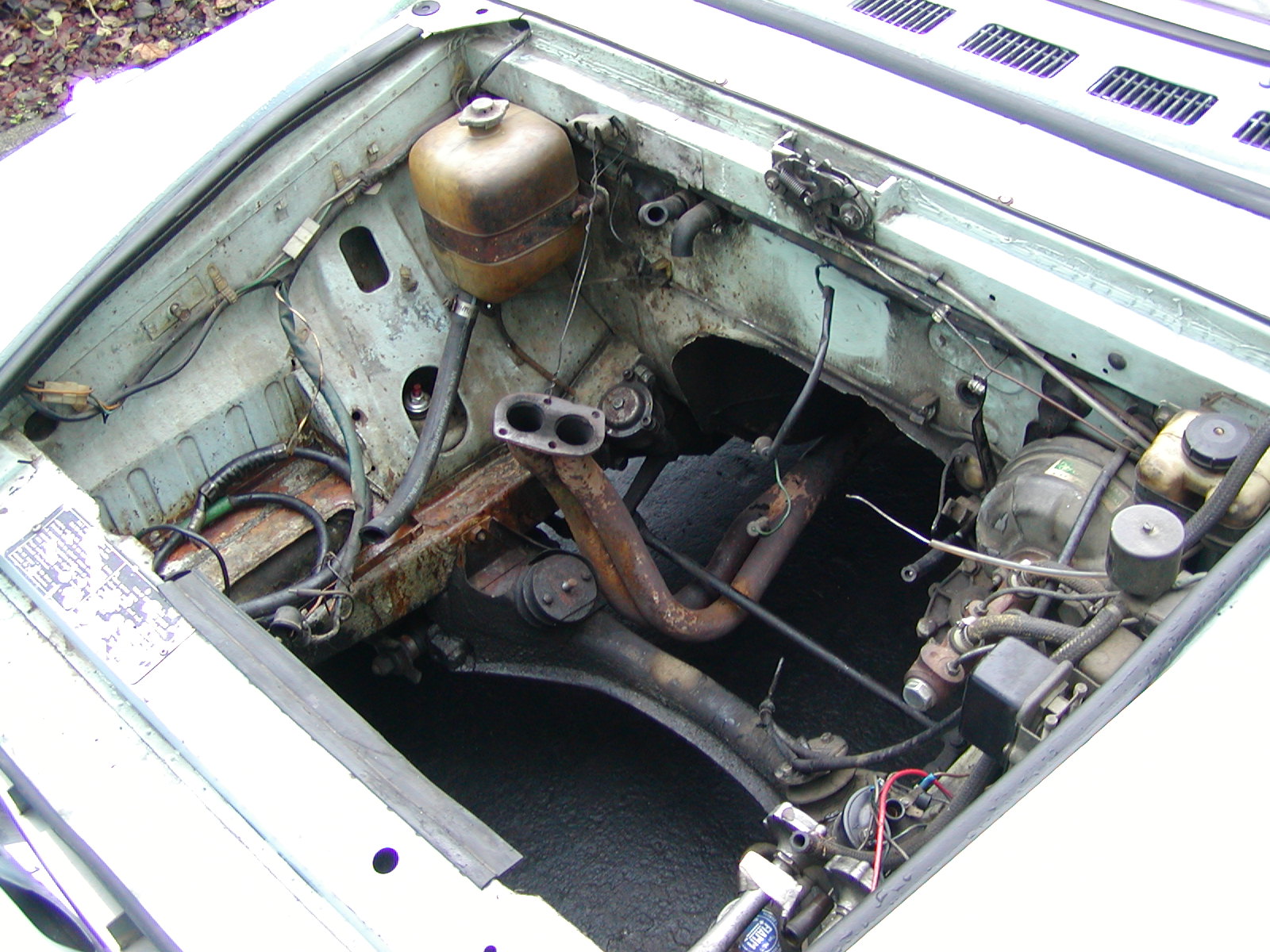

 PC150018.JPG Shot of the engine bay from the driver side. |

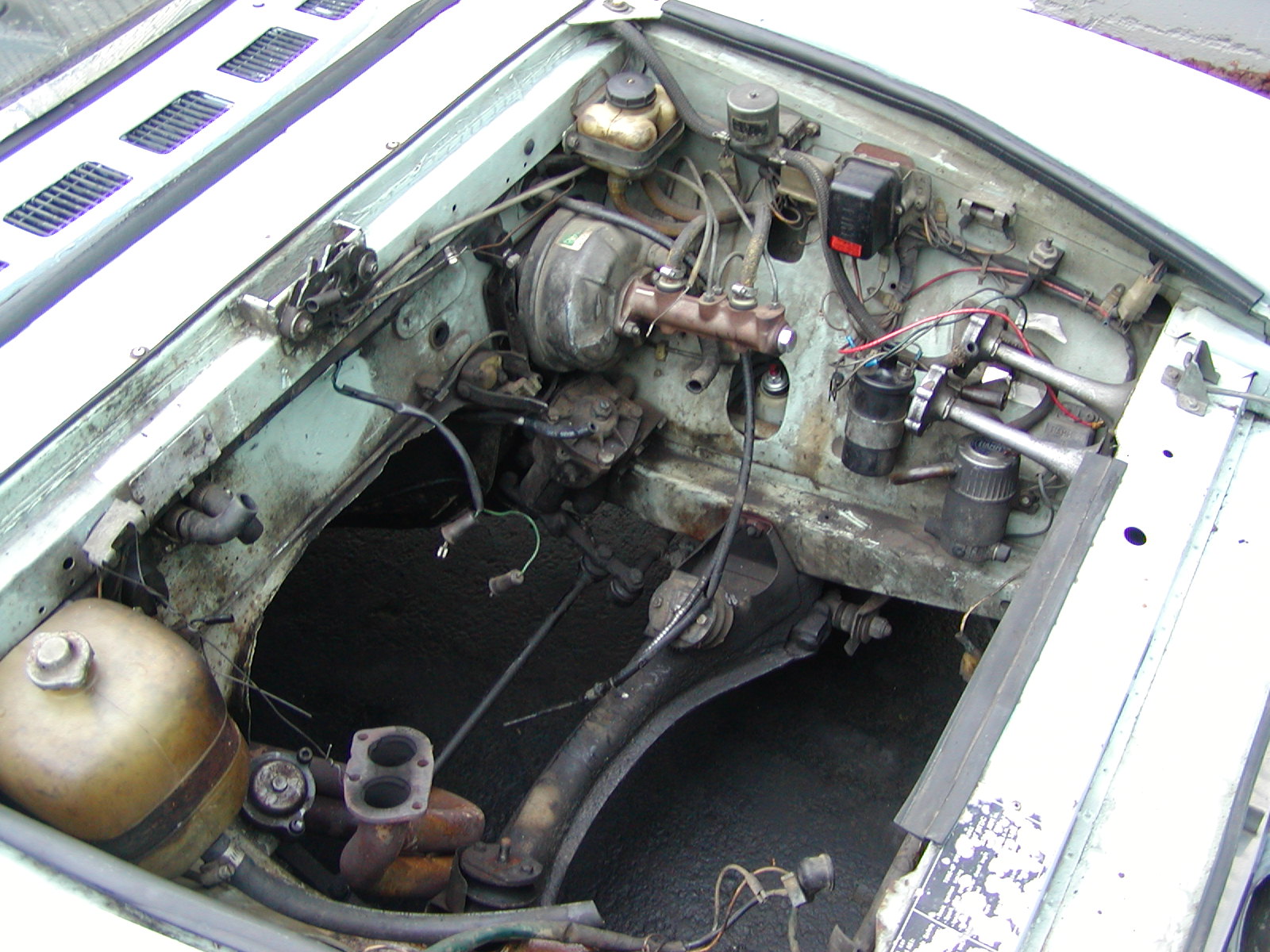

 PC150019.JPG From the passenger side. |

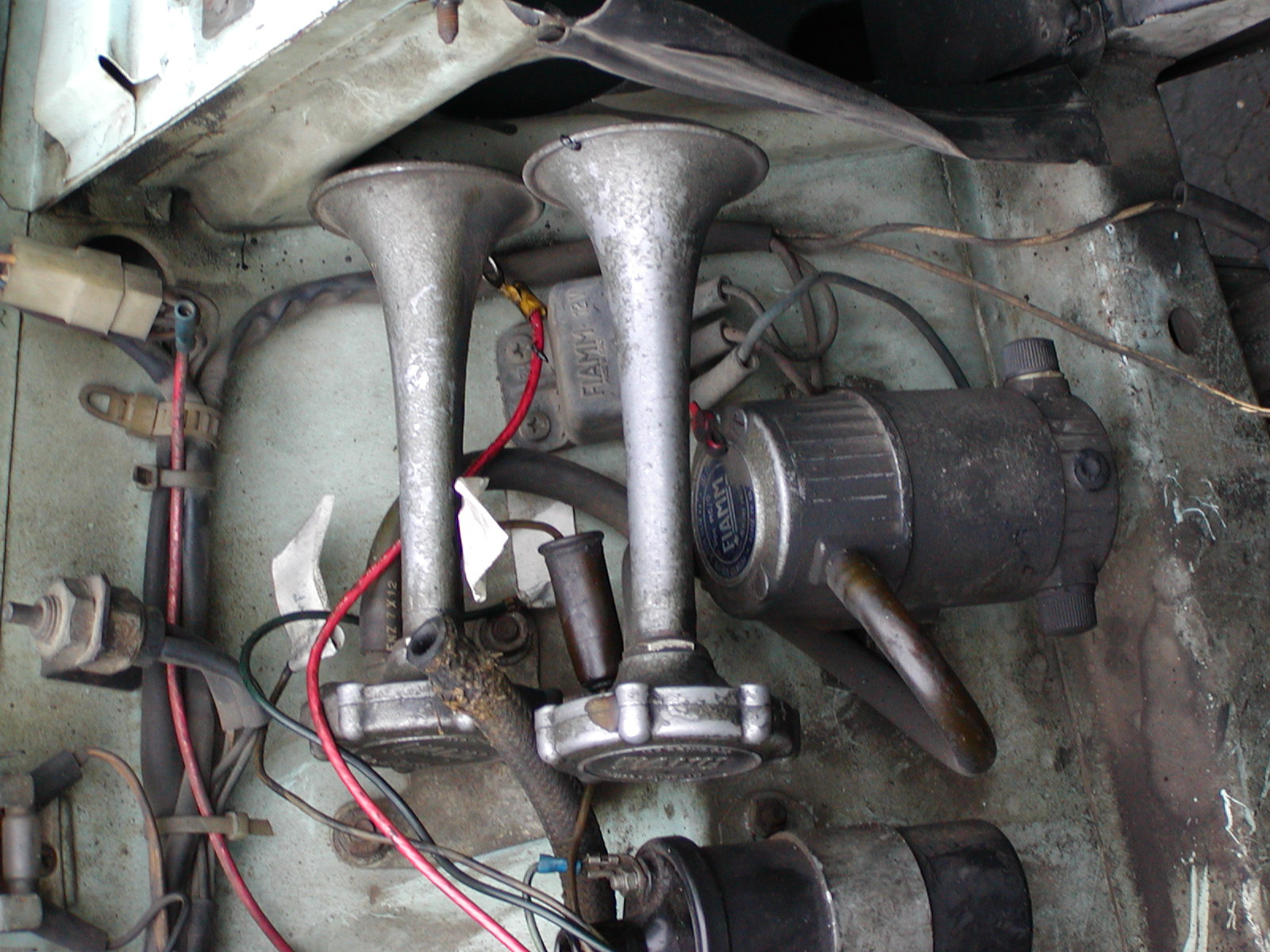

 PC160020.JPG The prerequisite air horns. |

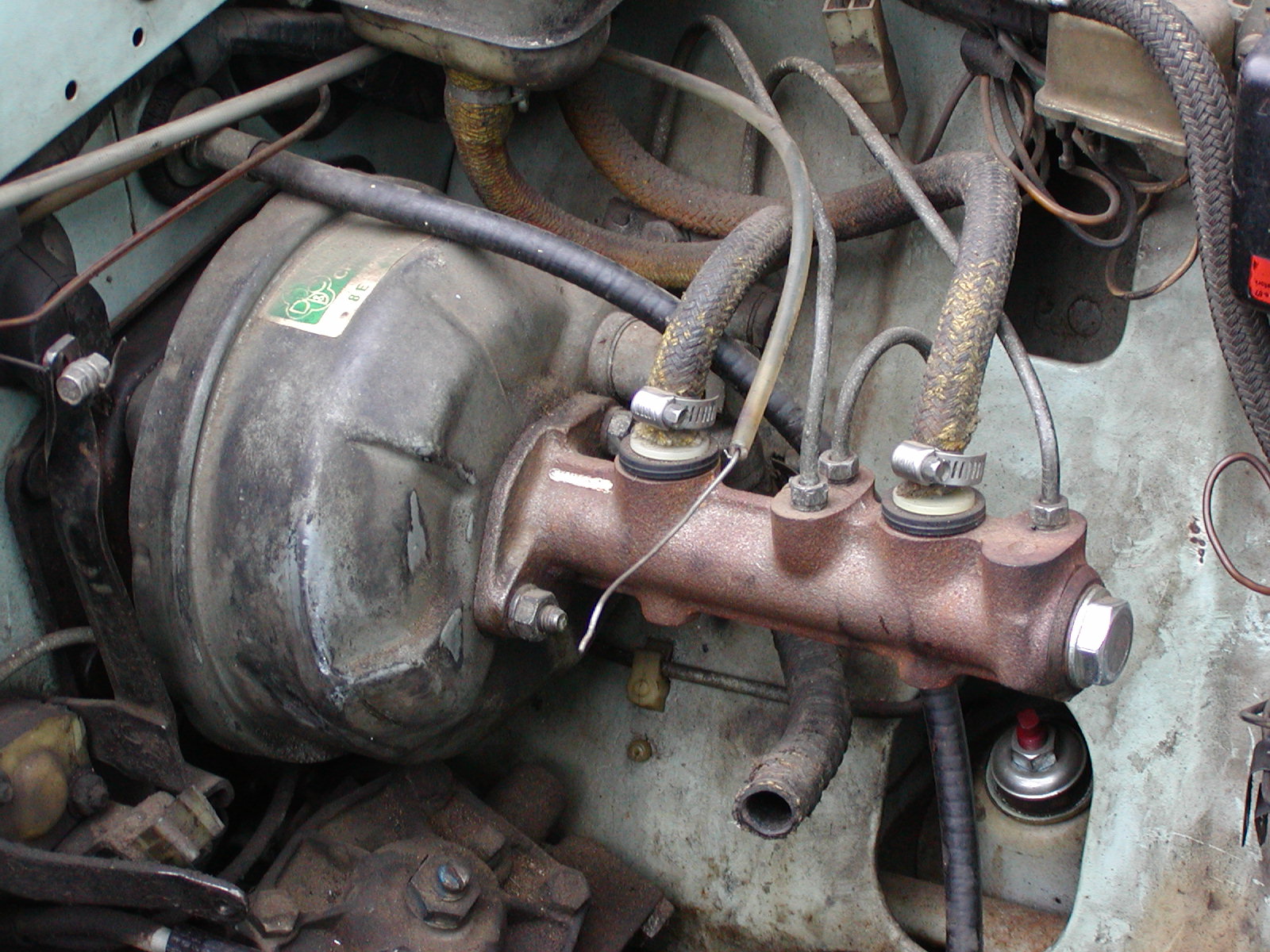

 PC160021.JPG Brake booster and master cylinder. |

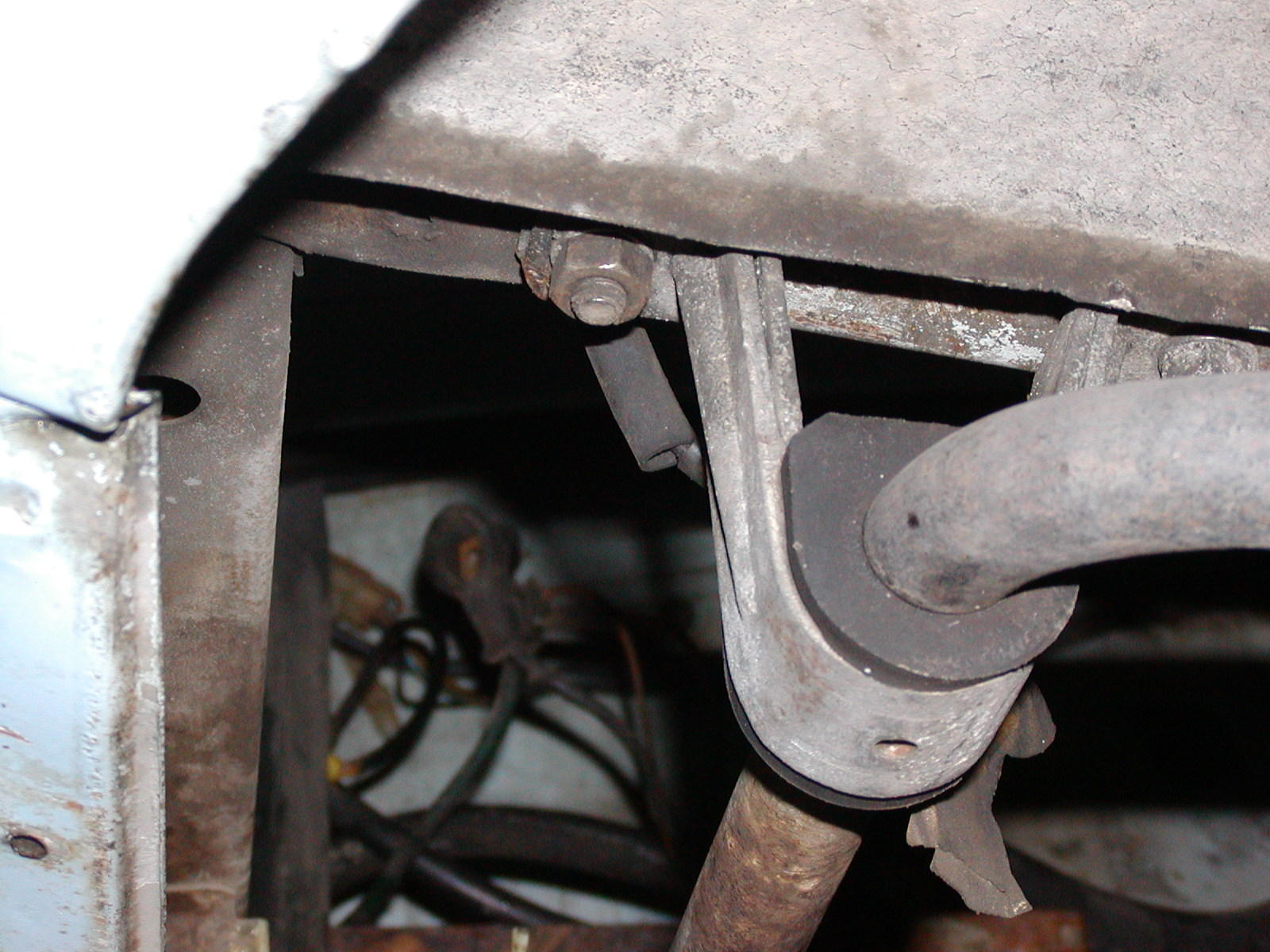

 PC160022.JPG Detail of the anti-roll bar bracket. |
